Position:buses > 12m-13m > Youngman Bus JNP6120T
Youngman Bus JNP6120T
Youngman Bus JNP6120T
Youngman Bus JNP6120T Youngman Bus JNP6120T Youngman Bus JNP6120T Youngman Bus JNP6120T
Youngman Bus JNP6120T

Model:

Seats:

Dimensions(mm):
12650X2600X3700

Add to Favorites>>

Technical Parameter

Dimensions(mm) 12650X2600X3700
G.V.W.(kg) 20000
Wheelbase(mm) 6500
Max.Grade Ability(%) 48
Seats 42+1+1
Luggage Capacity(m3 ≥8.5
Fuel Tank (l) 310L+100L
Engine Model USA Cummins ISME 385 30
Chassis Model YOUNGMAN
Chassis Clutch Imported Sachs
Chassis Gearbox ZFS6-1700BO
Chassis Braking System WABCO ABS, Double Circuit Air Brake, Parking Brake with energy-stored Spring, FF disc and RR Disc brake
Energy Diesel

Product Details

The length of JNP6120T is 12.65m,it adopt unique Monocoque technology,which ensures the safety and fuel economy.Besides,it is installed with world-famous spare parts brands,such as USA Cummins motor,ZF gearbox,Neoplan independent suspension front axle,Meritor rear axle,Voith retarder,imported Hella lights and so on.Adapting CAN system,ABS,ASR braking system assures driving safety.

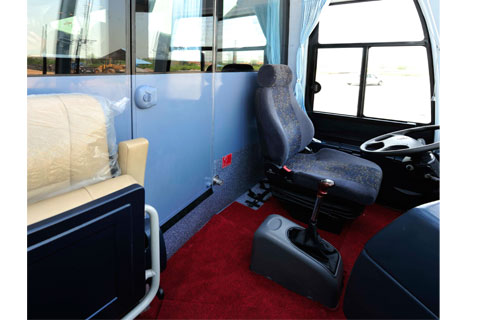

Front windscreen is divided into two parts,which reduces maintenance cost;The installation of separation wall separates driver area and passenger area,which reduce the noise and ensure riding comfor and driving safety.  Humanization trim design ,such as one passenger one Plug hole,independent reading lights and so on. High cost-performance ratio bring great benefit to customers,JNP6120T has gained great reputation in the Latin America, The total export volume to chile is nearly 300 units,then orders from other Latin America come,JNP6120T has become the main mature model for the Latin America Market.
