Position:buses > 9m-10m > Hengtong Bus CKZ6920CHB3

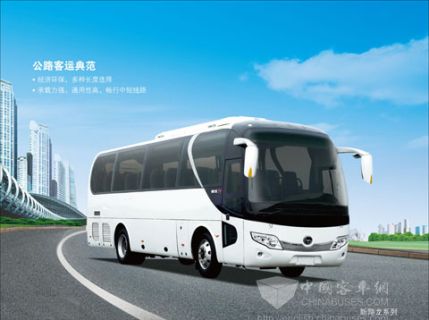

Hengtong Bus CKZ6920CHB3

Model:

Seats:

Dimensions(mm):
9195*2450*3230(3330 with A/C)

Add to Favorites>>

Technical Parameter

Dimensions(mm) 9195*2450*3230(3330 with A/C)
G.V.W.(kg) 12700
Wheelbase(mm) 4500
Max.Grade Ability(%) 20
Seats YT08C Luxury Passenger Seat with Adjustable Arm Rest, 37+1+1. Option:Foot Rest, Side Move Device,Two points Safe Belt,Tour Guide Back Rest,All seats with Safe Belt.
Luggage Capacity(m3 ≥4.4
Fuel Tank (l) 220
Engine Model YC6A240-30/ISDe230 30/YC6J220-30
Engine Output (kw/rpm) 177/169/162
Engine Max. Torque (N.m/rpm) 950/900/960
Chassis Model EQ6920R3AC
Chassis Clutch Single Dry Plate, Diaphragm Spring, Hydraulic Pneumatic Assist.
Chassis Suspension System Multi Piece Leaf Spring, Double Shock Absorber, Front Horizontal Stabilizer Bar. Option: F2/R4 Air Suspension.
Chassis Gearbox 5 Speed Transmission, Long Distance Soft Shaft Control. Option: 6 Speed Transmission.
Chassis Braking System Double Circuit Pneumatic Brake, Energy Storage Spring Parking Brake, Brake Shoe Automatic Gap Adjust Arm, ABS.
Energy Diesel

Product Details

The Volitant Dragon is interesting from an economic point of view since it can be used both for excursions and as a city bus too.



This combination is ideally suited for intercity routes.



Besides its attractive exterior, the inner values of the Volitant Dragon are also superb.



Fitted our for optimal comfort combined with innovative engineering and safety components, it offers an exceptional price-to-performance ratio.
