Foton AUV Takes Lead in New Energy Buses

Jointly supported by Ministry of Science and Technology and Beijing Municipal Government, Beijing New Energy Automotive Design and Manufacturing Base was set up under the leadership of Beiqi Foton Motor Co., Ltd.

·	Foton: Sales Volume Jumped by 3.6% from Jan. to Apr
·	Foton AUV Inked a Deal with India
·	Foton AUV Bus Becomes Mobile Hospitals in West China
·	Foton AUV Pockets Best Coach Award in Beijing Bus & Truck Expo
·	Foton's Hybrid Buses Head for the World


Second plant come into product	Electrophoresis Work Shop	Assembly work shop	Assembly Work Shop	Monocoque Work Shop


Monocoque Work Shop	Assembly Line	Assembly Work Shop	Chassis Production Line	Phosphating Line


2009-2-29:Foton Auto Signed Cooperation Agreement with Daimler AG	2008-12-28:Awarded" Beijing New Engergy Auto Design & Produce Industry Basement"	2008-8-31:Integral Bus BJ6125 Line Off	2008-8-20:Grand Delivering Ceremony to Inner Mongolia	2008-1-11:Hybrid Bus Globe Launch Ceremony


Technical support	Technical support	After-sales service training	After-sales service training	Spare parts warehouse

BJ6830/6880 Intercity Bus

Model	FOTON BJ6830/6880 Intercity Bus
Engine Model	YC210-20(Euro II); Cummins EQB210 20（Euro III）
Max.Output [hp]	210；210
Max. Torque [N.m/rpm]	710N.m/(1400-1600)rpm；700N.m/1500rpm
Max. Speed [km/h]	≥110；≥115
Gearbox	Product with 6 forward gears
Seating Capacity	Intergral PS system
Dimension Length\Width\Height	8350x2430x3260（3400）；8850x2430x3260（3400）
Wheelbase[mm]	3950；4300
Fuel Consumption per 100km	≤18

BJ6102 Intercity Bus

Model	FOTON BJ6102 Intercity Bus
Engine Model	WD615.30；YC6A240-20(Euro II)；Cummins C300（Euro III）
Max.Output [hp]	300；240；300
Max. Torque [N.m/rpm]	1160N.m/1100-1600rpm；890N.m/(1400-1600)rpm；1125N.m/(1200-1400)rpm
Max. Speed [km/h]	≥110
Gearbox	Product with 6 forward gears
Seating Capacity	Intergral PS system
Dimension Length\Width\Height	10680x2500x3580
Wheelbase[mm]	5170
Fuel Consumption per 100km	≤23

BJ6126 Intercity Bus

Model	FOTON BJ6126 Intercity Bus
Engine Model	WD615.46(Euro II); Cummins L340 20（Euro III）
Max.Output [hp]	360；340
Max. Torque [N.m/rpm]	1460N.m/1400-1600rpm；1350N.m/1400rpm
Max. Speed [km/h]	≥120
Gearbox	Product with 6 forward gears
Seating Capacity	Intergral PS system
Dimension Length\Width\Height	12000x2550x3780
Wheelbase[mm]	6150
Fuel Consumption per 100km	≤25

BJ6100 City Bus

Model	FOTON BJ6100 City Bus
Engine Model	YC6A240-20；TBD226B-6IIC；YC6G230N-30(CNG)；WP6NG240E30 (CNG)
Max.Output [hp]	240；240；230；240
Max. Torque [N.m/rpm]	890N.m/(1400-1600)rpm；810N.m/1500rpm；850N.m/1400rpm；780N.m/1400-1600rpm
Max. Speed [km/h]	≥80
Gearbox	Product with 6 forward gears
Seating Capacity	Intergral PS system
Dimension Length\Width\Height	10500x2500x3050（3150）
Wheelbase[mm]	5000
Fuel Consumption per 100km	≤22

BJ6113/6123 Hybrid City Bus

Model	FOTON BJ6113/6123 Hybrid City Bus
Engine Model	ISBE185 32 ；ISBE220 31
Max.Output [hp]	180；220
Max. Torque [N.m/rpm]	700N.m/1500rpm；820N.m/(1200-1700)rpm
Max. Speed [km/h]	≥80
Gearbox	Product with 6 forward gears
Seating Capacity	Intergral PS system
Dimension Length\Width\Height	11400x2540x3050（3150）；11980x2540x3050（3150）
Wheelbase[mm]	5650；6150
Fuel Consumption per 100km	≤10

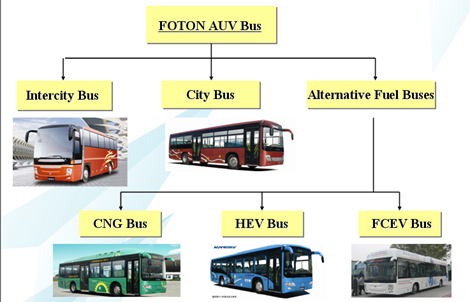

Products Structure of FOTON AUV Bus
