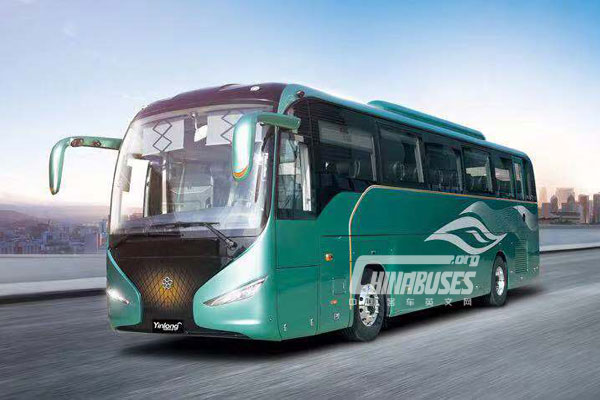

Yinlong Tour Bus with China Traditional Facial Makeup Design
yinlong121803
yinlong121803
Get Latest Price Views:15502

Technical Parameter

Length(mm) 12000
Width(mm) 2550
Height(mm) 3800
G.V.W.(kg) 1800
Max.Speed(km/h) 100
Approach Angle/Departure Angle(°) 9/8
Wheelbase(mm) 5800
Max.Grade Ability(%) 25%
Seats 24-53
Model Tourism Bus
Energy EV

Product Details

New energy power system

Driving motor
PMSM

Electric motor controller
 Five-in-one controller

Power battery

LFP(304B3 pack), 352.4kWh, water cooling, 2P180S, 10 battery packs in total


Battery management system
 Air cooling

Charging socket

 9-pin GB standard charging socket


Monitoring module
 4G remote monitoring module(available in China market only)

Electric steering oil pump

3kW electric power assisted steering pump


Electric air pump

3Kw oil-free piston electric air compressor


Electric air conditioning

Top mounted electric air conditioning(cooling capacity: 20kW), with disinfection modules and air purification function

Chassis

Brake master valve, pipe

China made master pump, double circuit air brake


Transmission axle
Single transmission axle
Front axle
China made 7.5T independent suspension front axle (Neoplan) bearing unit is maintenance-free in full life cycle.

Rear axle
China made 13T disc rear axle(fine grinding), bearing unit is maintenance-free in full life cycle.

Suspension
Front independent suspension, rear four air bags air suspension


Steering system

BOCSH 8098 import steering, multi-function steering wheel


Braking system

Front disc rear disc brake, energy storage spring parking brake(steel air reservoir)

Tire
295/80R22.5 tubeless radial tire(vacuum tire), aluminum rim, lift-type spare tire holder, full size spare tire.


Centralized lubricating system

有 Available
拖车装置
Trailer device
Available
Suspension
Front two rear four air suspension, with front transverse stabilizer bar


Drive-Assist

ESC body electronic stabilization system, ABES automatic emergency braking system, LDWS lane departure warning system


Tire explosion-proof

Tire pressure monitoring, front wheel tire explosion-proof device
