| Length(mm) | 14040 |
| Width(mm) | 3000 |
| Height(mm) | 3115 |
| G.V.W.（kg） | 23000 |
| Max.Speed(km/h) | 50 |
| Wheelbase（mm） | 7100 |
| Seats | 106/8+2 |

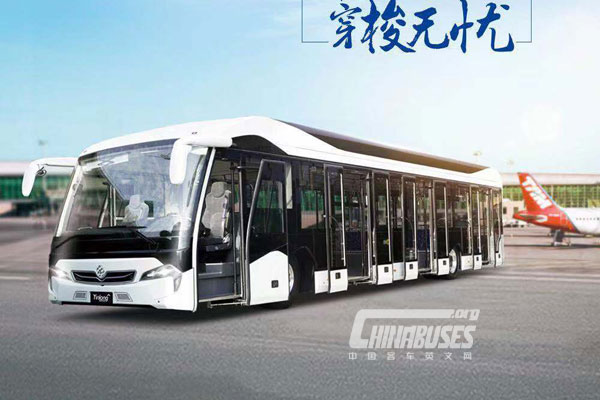

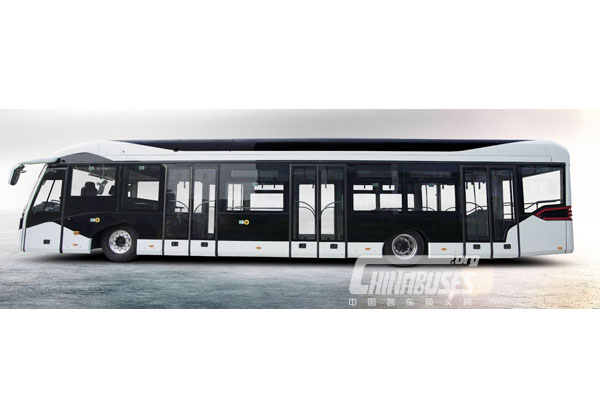

| Model | Special Vehicle Bus |
| Energy | EV |
| Standard specs | |||||||
| New energy power system |
Main motor | Double wheel motor, model TZ296-80S, motor rated/peak power: 80/160KW, rated/maximum torque: 170/500N.m | |||||
| Motor Controller | KTZ54X50S-EV6DK | ||||||
| Power battery pack and monomer | CATL LEP battery,, 589V/456Ah, 268.7kWh | ||||||
| charge | Model: GB standard 9pinscharging250A/750V Double charging guns |
||||||
| Accelerator | Electronic accelerator pedal | ||||||
| Electric air compressor | 4kW oil-free piston air compressor | ||||||
| Electric power steering pump | 3kW dual source electric steering pump | ||||||
| Auxiliary integrated controller | Three-in-one control system assembly | ||||||
| other | Electronic gear switch; ATS intelligent temperature control system | ||||||
| Chassis |
Frame | Full load-bearing steel frame | |||||
| Front bridge | 9.5T | ||||||
| Support bridge, drive bridge | CATL wheel drive axle, 14T | ||||||
| Suspension | Front five links and two airbags, rear axle with self-suspension (undecided), front and rear stabilizers | ||||||
| Steering gear | Integral electric power steering gear | ||||||
| brake | Front and rear disc brakes | ||||||
| transmission shaft | no | ||||||
| Tires | Front 385/65 R22.522PR, rear 275/70 R22.5 18PR | ||||||
| Rim | Aluminum rim | ||||||
| ABS, foot brake valve | Available | ||||||
| Centralized lubrication | Optional | ||||||
| other: | ECAS | ||||||
| Vehicle body | Body structure | Full load-bearing structure, steel frame body, aluminum skin | |||||
| Interior | Aluminum alloy duct, side aluminum-plastic plate, top aluminum-plastic plate with holes | ||||||
| Driving area decoration | Independent meter, the driver and the co-pilot are separated | ||||||
| Passenger seat | Soft seat | ||||||
| attendant seat | Soft seat | ||||||
| Driver's chair | Six-way adjustable airbag damping seat | ||||||
| armrest | Ø32 stainless steel handrails with rings | ||||||
| curtain | Front manual single-width shade, driver manual half-width shade (rail type) | ||||||
| floor | 18mm thick PVC floor. Manual flip pedals are installed at the left and right front passenger doors | ||||||
| Floor leather | Non-slip, flame-retardant, wear-resistant, environmentally friendly, quartz sand floor leather | ||||||
| Side window glass | Tempered glass, 3 inward open windows on each side | ||||||
| Front and rear windshield glass | The front windshield glass is panoramic laminated glass, and the rear windshield glass is panoramic laminated glass. | ||||||
| Passenger door | 1 pneumatic single swing door on the left and right sides of the driving area, 3 pneumatic double swing doors on the left and right of the passenger area | ||||||
| Side door/rear door | Aluminum alloy hatch | ||||||
| Rearview mirror and endoscope | Rabbit ear electric rearview mirror, electronic rearview mirror | ||||||
| Skylight | 1 safety sunroof with ventilation fan | ||||||
| Vehicle identification | National standard | ||||||
| Electrical equipment |
Instrument and CAN | CAN bus instrument | |||||
| Lamps | Front and rear combination headlights, double-through LED interior ceiling lights, and a C-type low-intensity aviation obstruction light that meets the standard on the front and rear ceilings | ||||||
| air conditioning | Driving area: Songzhi air conditioner; Passenger area: Gree air conditioner | ||||||
| Audiovisual system | Two televisions | ||||||
| monitor | By standard | ||||||
| Communication device | Emergency alarm and two-way intercom device in passenger area and driving area | ||||||
| Electric defrost | High voltage electric defrost | ||||||
| Passenger area heater | no | ||||||
| Wiper | 180W double speed wiper with scrubber | ||||||
| Battery | 80AhX2, maintenance-free | ||||||
| speaker | Inside speakers | ||||||
| Automatic fire extinguishing device | available | ||||||
| Street sign | Front, rear and side road signs (not installed in the prototype) | ||||||
| Coin machine, credit card machine | Not available | ||||||
| Flame retardant insulation material | Fireproof board | ||||||
| Others |
annex | 1 8kg fire extinguisher in the driving area and 1 trash can in the passenger area. Equipped with anti-theft alarm type escape hammer. A set of vehicle-mounted tools and special tools. Each car is equipped with 2 triangle woods with handles. Each car is equipped with a tripod for danger signs. Equipped with reflective vest and insulating gloves. | |||||
| other | The glass breaker can also be an emergency hammer. The quantity and position should be able to break all the windows of the car. The anti-theft device should be installed at a position within the reach of the driver to cut off the main switch by manual power supply; | ||||||
| Paint/pattern | Domestic plain paint | ||||||
