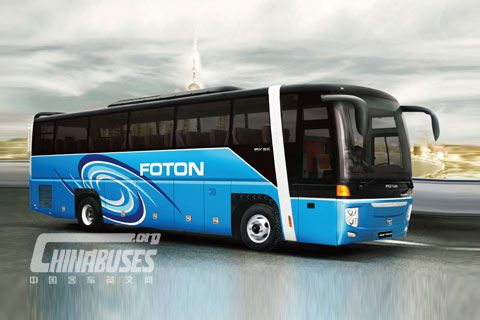

Foton Bus BJ6126+Weichai Power WD615.46, Cummins L340 20 engine
Get Latest Price Views:15871

Technical Parameter

Length(mm) 12000
Width(mm) 2550
Height(mm) 3655(3780)
G.V.W.(kg) 17500,18000
Wheelbase(mm) 6150
Seats 45+1+1
Fuel Consumption(l/100km) 25
Fuel Tank (l) 400
Engine Model WD615.46 (Diesel), Cummins L340 20 (Diesel)
Engine Output (kw/rpm) 266kW(360PS)/2200rpm, 250kW(340PS)/2200rpm
Engine Max. Torque (N.m/rpm) 1460N·m/1400-1600rpm, 1350N·m/1400rpm
Chassis Clutch Single-plate, dry type
Chassis Suspension System Leaf spring
Chassis Gearbox 6 speed, manual
Chassis Braking System Dual circuit pneumatic drum brake, energy storage spring parking system, ABS & automatic clearance adjust arm, retarder
Energy Natural Gas
