| Length(mm) | 12500 |
| Width(mm) | 2550 |
| Height(mm) | 3850/3710 |
| G.V.W.（kg） | 21,500 |
| Max.Speed(km/h) | 120 |
| Approach Angle/Departure Angle(°) | 13º/10º |
| Wheelbase（mm） | 5800+1350 |

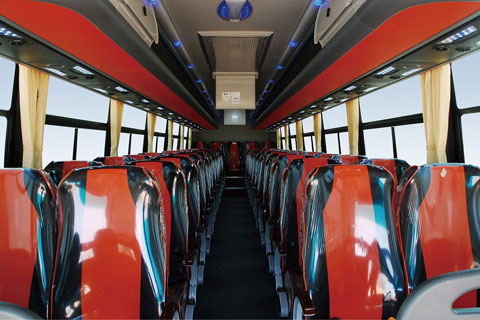

| Seats | Adjustable type cloth seats ZTZY3210 2+2 layout 61+1 seats, (Fixing type cloth seatsZTZY3072,3+2 layout 70+1) , Driver seat ZTZY1050, |
| Luggage Capacity（m3） | 10.4 |
| Fuel Tank (l) | 400L+400L |
| Engine Model | Cummins L360 20 |
| Engine Output (kw/rpm) | 264 |
| Engine Max. Torque (N.m/rpm) | 1480 |
| Chassis Clutch | Coil spring, Ø430 |
| Chassis Suspension System | Multi-Leaf spring Suspension |
| Chassis Gearbox | S6-160 ,ZF Technology, six gears, mechanism |
| Chassis Braking System | Dual circuit air braking, drum brake |
| Chassis Steering System | Integral assistant power steering |
| Front Axle | 7.5 Ton front axle |
| Rear Axle | 13 Ton rear axle |
| Energy Storage System/Battery | 2×12V/195Ah / 28V /150A+140A |
| Tyre | 315/80R22.5 |
| Other Facilities | Brake slack auto adjuster, Electric Retarder, ABS |
| Energy | Diesel |
