Position:buses > 12m-13m > Hengtong Bus CKZ6127CH3

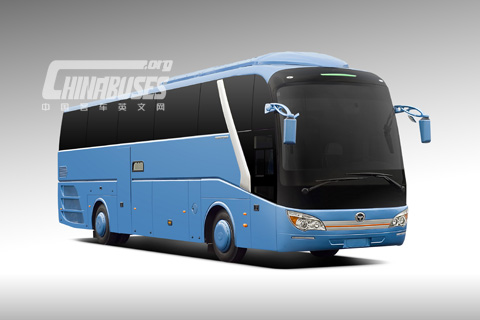

Hengtong Bus CKZ6127CH3

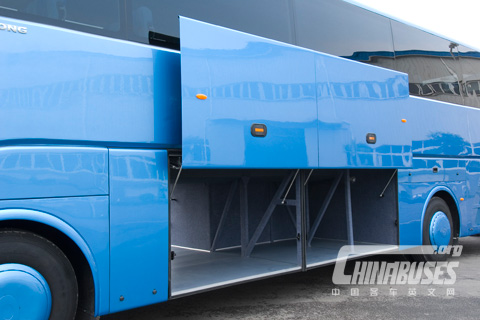

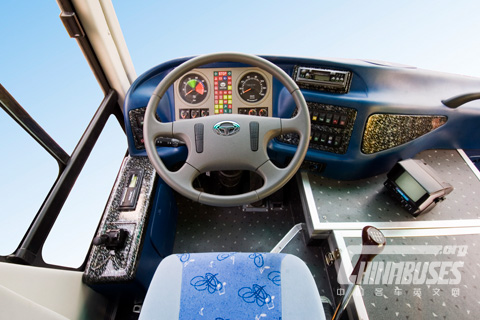

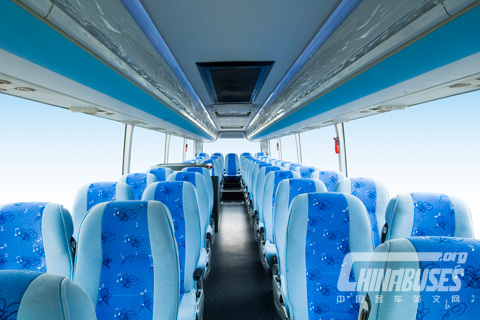

Dash Board Interior Hengtong Bus CKZ6127CH3 Baggage Cabin
Get Latest Price Views:12252

Technical Parameter

Length(mm) 12000
Width(mm) 2550
Height(mm) 3900
G.V.W.(kg) 18000
Wheelbase(mm) 6000
Max.Grade Ability(%) 20
Fuel Tank (l) 320
Engine Model YC6L330-30/WP10.336/P11C-UJ
Engine Output (kw/rpm) 243/247/259
Engine Max. Torque (N.m/rpm) 1280/1250/1454
Chassis Model SX6112BYD-30
Chassis Clutch φ420 Single Dry Plate
Chassis Suspension System Multi-piece Leaf Spring(9/11),Double Hydraulic Shock Absorber, Horizontal Stabilizer at Front Overhang. Optional: Air Suspension, F 2/ R 4
Chassis Gearbox S6-135/S6-135/S6-150 6Speed Synchroized Transimission, Long Distance Soft Shaft Control
Chassis Braking System F/R Dual Circuit Pneumatic Drum Brake, Air Energy Storage Spring Parking Brake, Air Dryer, Domestic ABS, Automatic Brake Space Adjust Arm. Optional: WABCO ABS; Domestic Eddy Current Retarder; Import Eddy Current Retarder.
Model Intercity
Energy Natural Gas

Product Details

Right for more economical touring, the Panorama heralds a new era in Hengtong's wide range of models and it is a class of its own on the entire coach market. The Panorama combines aesthetics and economy in a most gratifying way. Thanks to new production technologies and its modular design, the Panorama carries the day with its all-round cleverness and amazing price-to-performance ratio. Even the cost-effective standard variant already offers everything that a modern coach needs.
