Length(mm) | 12000 |
Width(mm) | 2550 |
Height(mm) | 4200 |
G.V.W.(kg) | 21000 |
Wheelbase(mm) | 5170/1520 |
Seats | upper50+lower18+4+1 |
Chassis Suspension System | Air suspension |
Front Axle | ZF Front Axle/Disc Brake |
Rear Axle | ZF Electric Drive Rear Axle/Disc Brake |
Drive Motor | ZF Motor Controller |
Tyre | 275/70R22.5 |
Air Conditioning System | Overhead A/C、Cooling Capacity 30000Kcal/h |
Other Facilities | Vehicle Electrophoresis、Reversing monitor、CAN、Manually disabled pedal |
Model | City Bus |
Energy | EV |
Electrophoresis process
To adapt to the weather conditions around the world,
the cathode electrophoresis process is adopted for the whole bus
to remarkably enhance theanti-corrosion performance of the bus.
Comfortable driving
The fully enclosed cockpit provides drivers with independent and undisturbed driving space.
Smooth power, precise instrumentation, vehicle handling stability and smooth chassis performance adjustments
make it easy to control and retract.

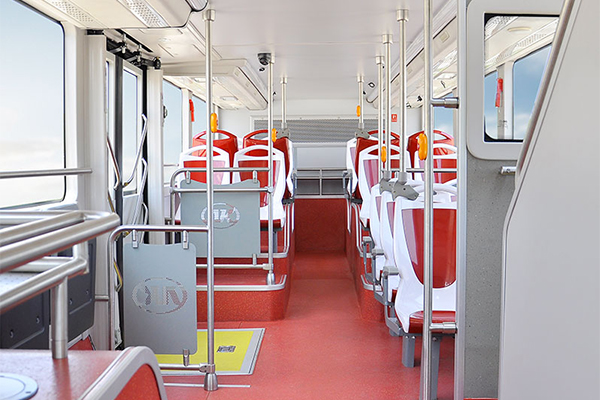

Safe, convenient and comfortable sightseeing
Ankai double-decker buses are equipped with high-end seats,
and USB charging sockets can be installed next to the seats to meet the charging needs of passengers for mobile devices.

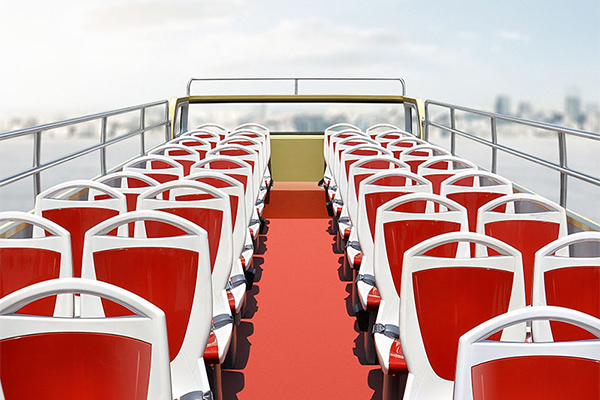

Large viewing windows are used on both sides of the bus, the second floor is semi-open, the whole vehicle is transparent and bright,
and the wide viewing field greatly enhances the passenger's sightseeing experience.
