| Length(mm) | 12000 |
| Width(mm) | 2550 |
| Height(mm) | 3330 |
| G.V.W.（kg） | 19000 |
| Max.Speed(km/h) | 85 |
| Approach Angle/Departure Angle(°) | 7/7 |
| Wheelbase（mm） | 6000 |
| Max.Grade Ability（%） | 20% |
| Seats | 34 |

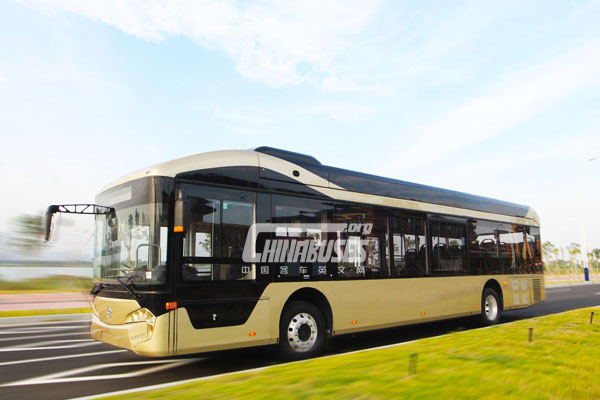

| Model | City Bus |
| Energy | EV |
| Driving motor | Tz368XSPE300WH | |
| Motor controller | KTZ60X45SP100B | |
Power battery |
Energy capacity 114.26kWh(634.8V*180Ah) |
|
BMS |
It has a single cell voltage too low or too high abnormal self-diagnosis and alarm function and can maintain the overall balance of the battery through the battery management system in a certain range. |
|
Charging base |
European standard Combo2 charging base |
|
Monitoring module |
Remote monitoring module |
|
Electric power steering pump |
Electric power steering pump (YLP-1817R1715B, 3KW) |
|
Electric air pump |
Air pump (model no. B16VXB4/12-Y, three - phase asynchronous, 3kW) |
|
| DC/DC High voltage auxiliary box DC/DC |
With high voltage power supply master switch, high voltage network bridge, high and low voltage conversion module. With overload, short-circuit, leakage automatic shutdown and complete high-voltage power cut off function. |
|
Electric A/C |
Electric air conditioning, cooling capacity: 20kW, heating (heat pump 18kW, PTC10kW). Driver has separate heating and venting. Driver has separate AC ports above him and in front of him. |
