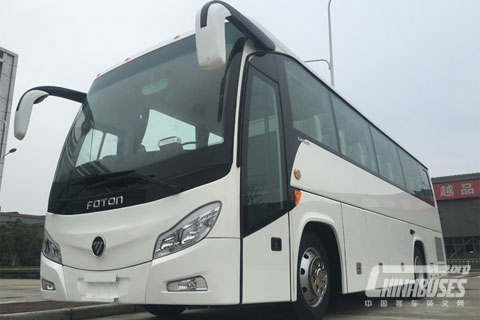

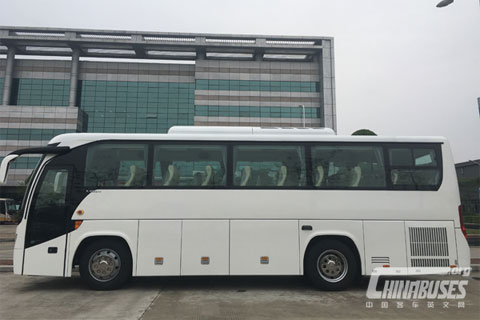

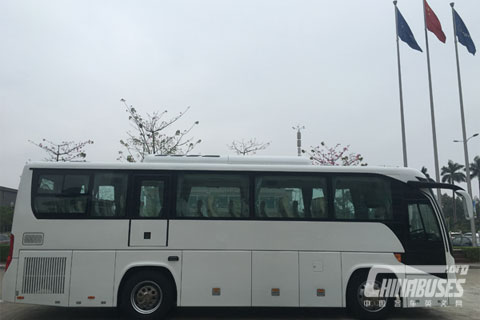

Foton AUV Bus BJ6902TD
Foton AUV Bus BJ6902TD
Foton AUV Bus BJ6902TD Foton AUV Bus BJ6902TD Foton AUV Bus BJ6902TD
AUV Bus BJ6902TD

Model:
Intercity

Seats:
31-40seats

Dimensions(mm):
8995×2450×3380(including A/C)

Add to Favorites>>

Technical Parameter

Dimensions(mm) 8995×2450×3380(including A/C)
Max.Speed(km/h) 120
Seats 33+1(passenger+driver)
Fuel Tank (l) 185
Engine Model YUCHAI YC6J245-30 180KW(245PS)
Chassis Clutch ∮395 SACHS clutch, single, dry
Chassis Suspension System Air suspension , front 2 & rear 4 air bellow
Chassis Gearbox QJS6-100
Chassis Braking System Front disc /rear drum brake, with automatic slack adjuster
Chassis Steering System Intergral power steering, Right hand drive
Front Axle Chinese Fangsheng front axles
Rear Axle Chinese Fangsheng rear axles
Tyre 9R22.5 tubelss radial tyre, stainless steel wheel covers
Air Conditioning System Dependent air conditioner , roof mounted 23,000Kcal with Bitzer air compressor
Other Facilities 1 sunroofs with ventilation fan; manual parallel moving luggage compartment door; 6-line CCTV with the function of color reverse monitor
Length 9m-10m
Seats 31-40seats
Model Intercity
