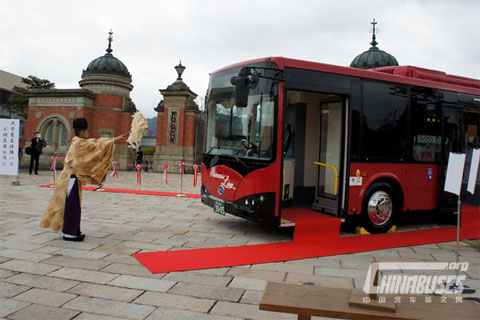

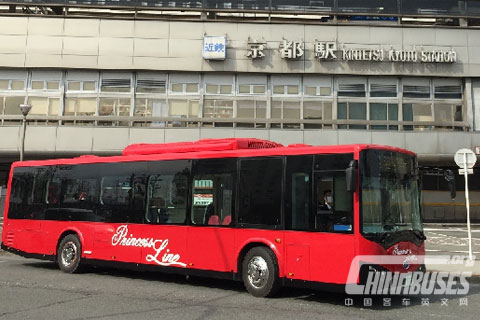

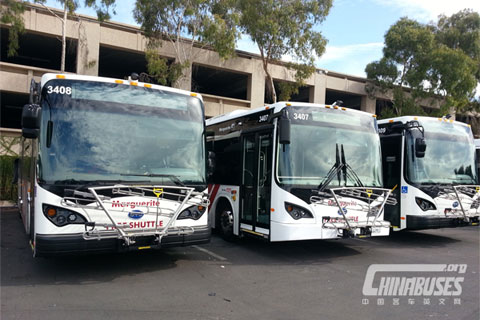

BYD Electric Bus K9
BYD Electric Bus K9
BYD Electric Bus K9 BYD Electric Bus K9 BYD Electric Bus K9 BYD Electric Bus K9
BYD Electric Bus K9

Model:
City Bus

Seats:
31-40seats

Dimensions(mm):
12,000X2,500X3,300

Add to Favorites>>

Technical Parameter

Dimensions(mm) 12,000X2,500X3,300
G.V.W.(kg) 18,000
Max.Speed(km/h) 70
Approach Angle/Departure Angle(°) 7.5°/ 7.5°
Wheelbase(mm) 6,100
Max.Grade Ability(%) ≥20%
Seats Up to 33
Engine Model AC Synchronous Motor
Engine Output (kw/rpm) 300 kW (150 kW×2)
Engine Max. Torque (N.m/rpm) 1,100 Nm (550 Nm×2)
Chassis Suspension System Air Suspension (ECAS system)
Chassis Braking System Front & rear disc, ABS
Energy Storage System/Battery BYD Fe Battery/324 kWh
Driving Range (km) ≥250
Tyre 275 / 70R 22.5
Length 12m-13m
Seats 31-40seats
Model City Bus
Energy EV
