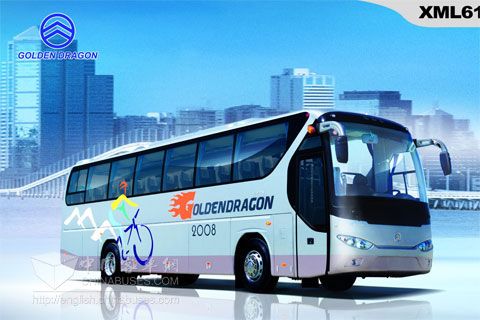

Golden Dragon Bus XML6127J12

Golden Dragon Bus XML6127J12

Technical Parameter

Dimensions(mm) 11985* 2540 *3750
Wheelbase(mm) 5400mm
Seats 24-55(including driver seat)
Fuel Consumption(L/100km) ≤ 24L
Luggage Capacity(m3) Max 9
Fuel Tank (L) Leaf spring 320L,Air suspension 400L
Engine Model Cummins CKD C300 20;Cummins L360 20;YC6G300-20
Engine Output (kw/rpm) 221kW(300ps)/2200rpm;264kW(360ps)/2200rpm;221kW(300ps)/2200rpm
Engine Max. torque (N.m/rpm) 1150N.m/ 1500rpm;1125N.m/1400rpm;1480N.m/1300rpm
Chassis Clutch Hydraulic with air assisted
Chassis Suspension System Leaf spring / Air suspension(option)
Chassis Gearbox manual transmission with synchromesh, six gears
Length 11m-12m
Seats 41-50seats
Model Intercity

Introduction

This vehicle is a combination of solemnity and elegance, featuring pithy and neat lines, clearly partitioned color patches, and a full curved surface.


The trim, from its design and materials, is an embodiment of the comfort of luxurious furnishings.


The vehicle has been designed in accordance with unitary body concepts using the UGNX3D software as the designing platform, which features a strict control of the vehicle’s curb weight to minimize fuel consumption.


The angle and the wind windward face of the front windshield are the result of a meticulous computer aided design.


The vehicle’s body framework features a closed loop design (with six closed loops in total), which greatly boosts the vehicle’s rigidity and brings the vehicle to Europe’s most stringent flip-over standards.
The CAN bus technology is employed for information management, minimizing joints and wiring harnesses.


German-made breakers and U.S. AMP adaptors are used to ensure the safety and reliability of the electric circuits in the vehicle.


The vehicle incorporates more than 10 patented technologies in overall design, inner luggage rack, micro porous rubber, and other aspects.
